Grundfos NBG 200-150-500/548 hydraulic pumps and agricultural water pumps are used for agricultural irrigation and municipal water supply

Name: Grundfos NBG 200150500548 hydraulic pumps and agricultural water pumps are used for agricultural irrigation and municipal water supply
Brand: Grundfos
Price: 200 USD

Wholesale Grundfos NBG 200-150-500/548 hydraulic pumps and agricultural water pumps are used for agricultural irrigation and municipal water supply from china suppliers

Brand Name : Grundfos

Model Number : NBG 200-150-500/548 AIAF2AESBQQEVW5

MOQ : 1

Price : 200-1000

Payment Terms : L/C,D/A,D/P,MoneyGram,Western Union,T/T

Supply Ability : 100

Delivery Time : within 15 workdays

Packaging Details : Wooden Box

Transported Liquids : Water

Liquid Temperature Range : -25 .. 120 °c

Liquid Temperature During Operation : 20 °c

Density : 998.2 Kg/M³

Rated Flow Rate : 343.5 M³/H

Rated Head : 45.01 M

Power Supply Frequency : 50 Hz

Rated Voltage : 3 x 380-415D/660-690Y V

Net Weight : 1370 Kg

Gross Weight : 1510 Kg

Maximum operating pressure : 16 bar

Maximum ambient temperature : 40 °C

Contact Now

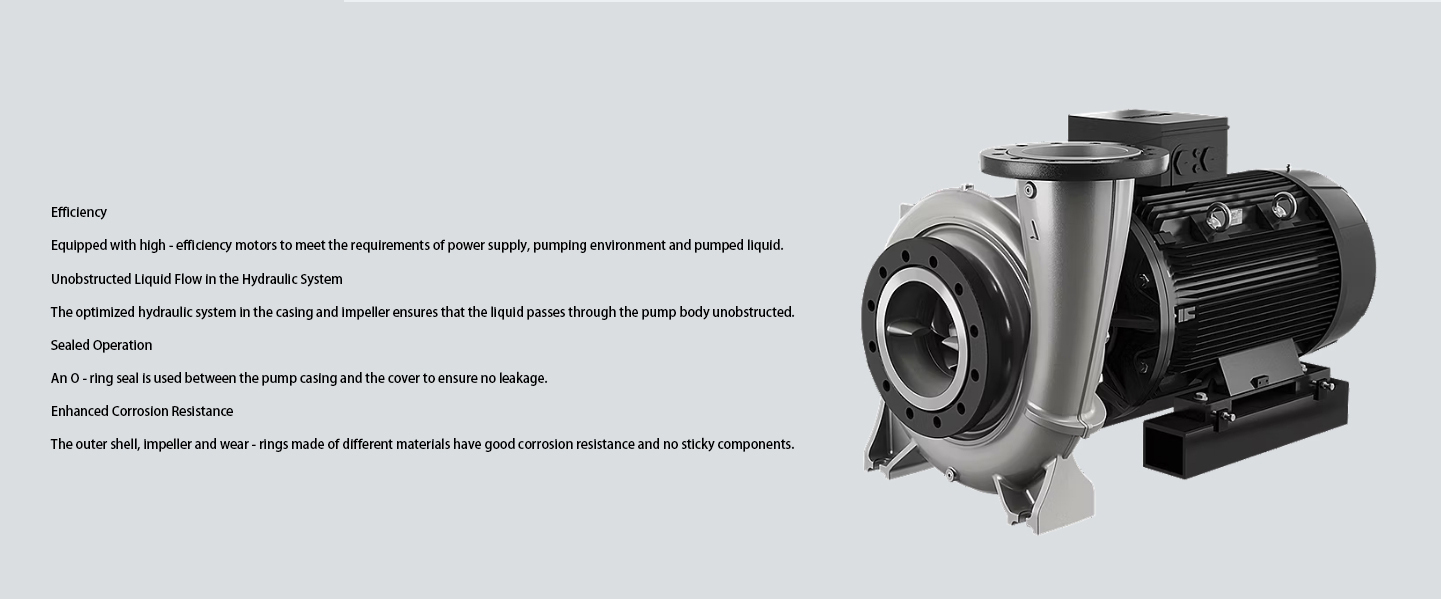

End-suction close-coupled single-stage pump
NBG 200-150-500/548 AIAF2AESBQQEVW5
Number: 93351241

Applications:

Commercial heating
Commercial air conditioning
Commercial water pressure boosting
District heating
Industrial cleaning processes
Heating supply
Desalination
Municipal water transmission and distribution
Irrigation
Community and building water supply

Compliance: Short-coupled pump in accordance with ISO 2858

NBG 200-150-500/548 AIAF2AESBQQEVW5
The non-self-priming single-stage volute centrifugal pump is designed in accordance with ISO 5199, and its dimensions and rated performance comply with ISO 2858 (16 bar). The flanges are of PN 16 type, with dimensions conforming to EN 1092-2. The pump is equipped with an axial suction port, a radial discharge port, a horizontal shaft, and a back-pull-out design, allowing maintenance personnel to disassemble the motor, motor bracket, cover, and impeller without loosening the pump casing or pipelines. The unbalanced O-type shaft seal meets the requirements of DIN EN 12756. An air-cooled asynchronous motor is closely coupled to the pump.

Grundfos NBG 200-150-500/548 hydraulic pumps and agricultural water pumps are used for agricultural irrigation and municipal water supply

Controller:

Frequency converter: None
Pressure sensor: N

Liquid:

Liquid conveyed: Water
Liquid temperature range: -25 .. 120 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

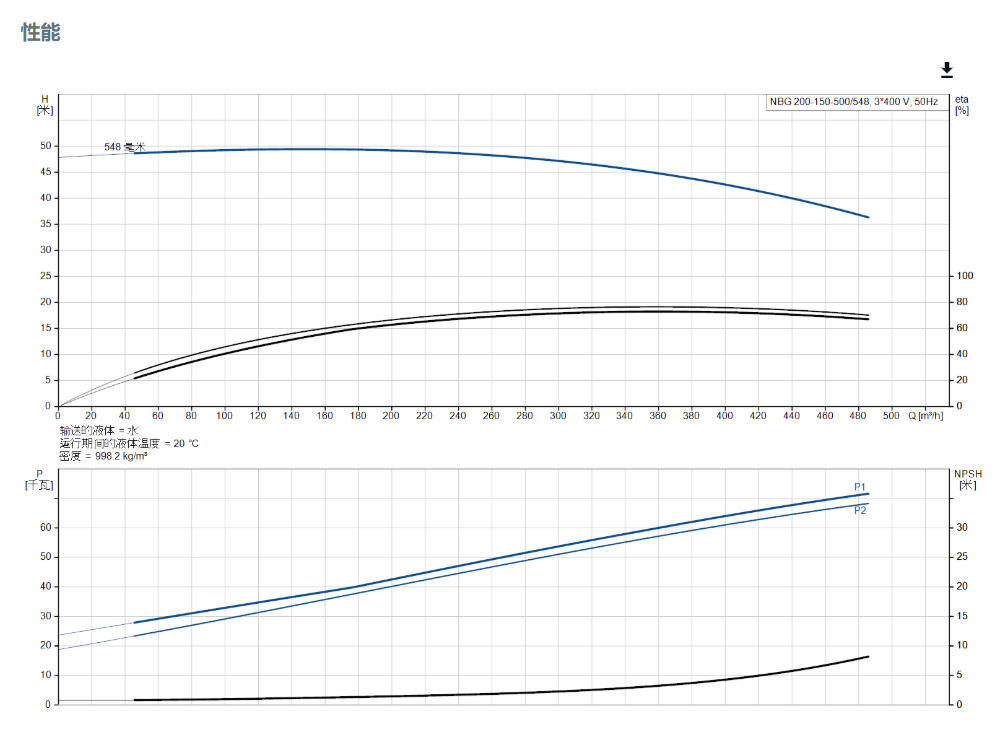

Technical Data:

Pump speed basis: 980 rpm
Rated flow rate: 343.5 m³/h
Rated head: 45.01 m
Impeller actual diameter: 548 mm
Impeller nominal speed: 500
Impeller type: Standard
Shaft seal configuration: Single
Main shaft seal: BQQE
Shaft seal code: BQQE
Curve tolerance: ISO9906:2012 3B
Bearing design: Standard

Materials:

Pump housing: Cast iron
- Pump housing: EN-GJL-250
- Pump housing: ASTM class 35
Wear ring: Brass
- Wear ring material: CuZn34Mn3AI2Fe1-C
Impeller: Cast iron
- Impeller material: EN-GJL-200
- Impeller material: ASTM class 30
Internal pump housing coating: CED
Shaft: Stainless steel
- Shaft material: EN 1.4301
- Shaft material: AISI 304

Installation:

Maximum ambient temperature: 40 °C
Maximum operating pressure: 16 bar
Pipeline connection standard: EN 1092-2
Inlet size: DN 200
Outlet size: DN 150
Pressure rating for pipe connection: PN 16
Bearing lubrication: Grease
Pump casing with support feet: Yes
Yes = With support block, No = Without support block: N

Electrical Data:

Motor model: 315SA
Rated power - P2: 75 kW
Power supply frequency: 50 Hz
Rated voltage: 3 x 380-400/660-690 V
Rated current: 144-137/82.9-79.3 A
Starting current: 700 %
Cos phi - Power factor: 0.83
Rated speed: 980 rpm
Efficiency: IE4 95.4%
IE efficiency class: IE4
Motor full-load efficiency: 95.4 %
Motor efficiency at 3/4 load: 95.3 %
Motor efficiency at 1/2 load: 94.3 %
Motor pole count: 6
Enclosure rating (IEC 34-5): 55 (Protect. water jets/dust)
Insulation class (IEC 85): F
Motor number: 92555158
Bearing insulation type N end: COATED RING

Other:

Minimum Efficiency Index, MEI ≥: 0.66
Net weight: 1,370 kg
Gross weight: 1,510 kg
Transport volume: 2.35 m³
